Design Capabilities
Pow-R-Line i compartmentalized switchboards are engineered for applications where a greater degree of safety is required. These switchboards are rear accessible and utilize the full family of Cutler-Hammer molded case circuit breakers and fusible switches.
Design capabilities are enhanced by a wide range of available main devices, utility provisions, and customer metering arrangements.
 |
Customer Metering
- Full family of IQ metering and protective devices available.
- n Conventional meters and switches available.
|
 |
Utility Metering
- Built to specific utility requirements for all service areas.
|
 |
Main Devices, Individually Mounted
- Series C Breaker; 400-2,500 amperes, fixed mounted or drawout.
- Insulated Case Power Breaker; SPB, 800-5,000 amperes, fixed mounted.
- Insulated Case Power Breaker; SPB, 800-4,000 amperes, drawout.
- Power Circuit Breaker; DSII/DSLII, 800-4,000 amperes, fixed mounted or drawout.
- Digitrip RMS 310, 510, 610, 810, 910, and OPTIM 750 and 1050 Trip Units available.
- Bolted pressure contact switch; 800-6,000 amperes, fixed mounted.
- Fusible switches; FDPW, 400-1,200 amperes, fixed mounted.
- Main lugs only; mechanical or compression, 400-6,000 amperes.
- Incoming busway or transformer connection available.
|
 |
Feeder Devices, Compartmentalized
Series C Breaker; 15-1,200 amperes.
Digitrip RMS 310, OPTIM 750, and OPTIM 1050 Trip Units available.
Fusible switches; FDPW, 30-1,200 amperes.
Ability to mix circuit breakers and fusible switches.
Optional 11X compartment for customer mounted devices available.
Optional customer metering available; maximum 38X space. |
Back to top of page.
Construction Features
- Meets NEMA Standard PB-2 and UL 891.
- Front and rear accessible.
- 6,000 ampere main bus ampacity.
- 65 kAIC standard bus bracing. Optional 100 kAIC or 200 kAIC.
- Standard aluminum bus bar. Optional copper or silver-plated copper bus bar.
- A full range of device modifications.
- ANSI 61 powder coat paint finish.
- NEMA Type 1 or Type 3R enclosures.
- Seismically tested, seismically qualified, and exceeds requirements of the Uniform Building Code (UBC) and the California Building Code (CBC).

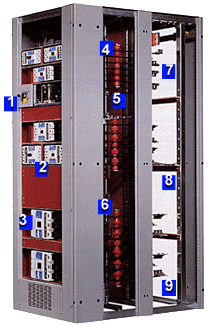

Distribution Section
– Front and Side View
 |
Available zero sequence ground fault. |
 |
Tandem mounted breakers through 400 amperes. |
 |
Glass polyester breaker compartment. |
|
Insulated copper load side runbacks. |
 |
Full length barrier isolating the bus and cable compartments. |
 |
Horizontal cross bus. |
 |
Anti-turn lugs. |
 |
Movable cable brace.
|
 |
Generous conduit space. |
Back to top of page.
Increased Safety Features
- Compartmentalized design for use where a greater degree of safety is required.
- Individual compartments for branch devices – glass polyester for breakers and steel for fusible switches. Compartments help eliminate possible contact with the main bus and reduce fault propagation.
- Three section construction with each barriered from the other.
- Device Section. Each device is mounted in its own compartment.
- Bus Bar Section. Contains both horizontal and vertical busses.
- Rear Cable Compartment. Com pletely isolated from the bus bars.
- Insulated copper runback. Power taken from the protective device by the runback through a standard full height glass polyester barrier to the rear cable compartment, virtually eliminating the possibility of accidental contact with the main busses during installation or maintenance.
Back to top of page.
Optional Features
 |
Five L- or N-frame breakers with Digitrip OPTIM Trip Units and one Breaker Interface Module can be mounted in a single 45-inch (1143.00-mm) wide distribution structure. Six L- or N-frame breakers can be mounted when the Breaker Interface Module is mounted in another section or is not required. |
|
Digitrip OPTIM Trip Units are wired at the factory to customer specifications and are shipped ready for customer programming. |
 |
 |
Digitrip OPTIM Trip Units can be easily programmed and monitored at the switchboard using the hand held OPTIMizer. |
|
